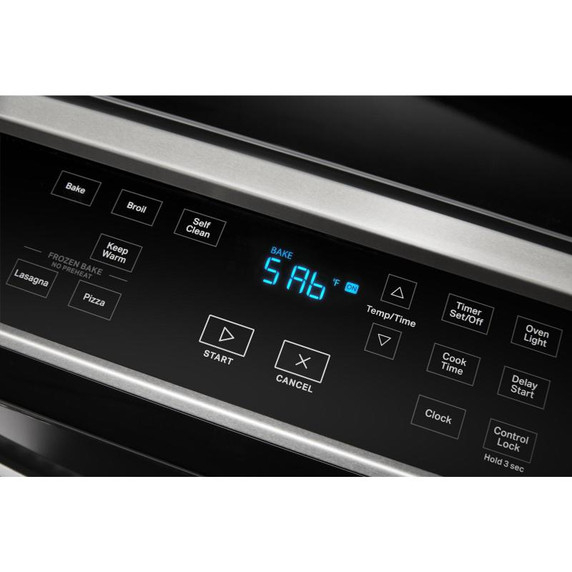

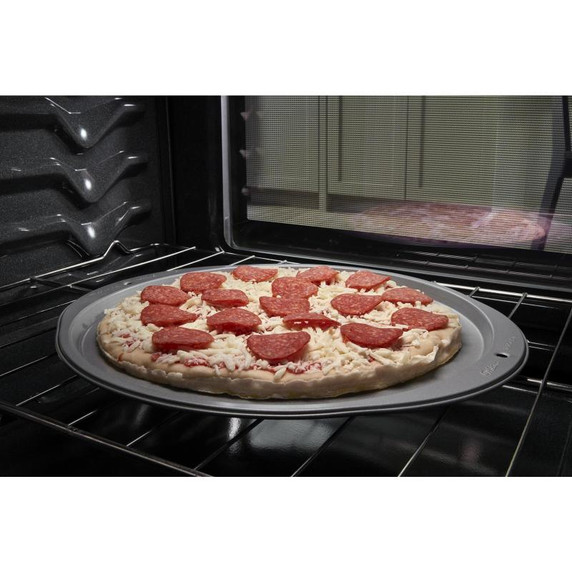

Frozen Bake™ technologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

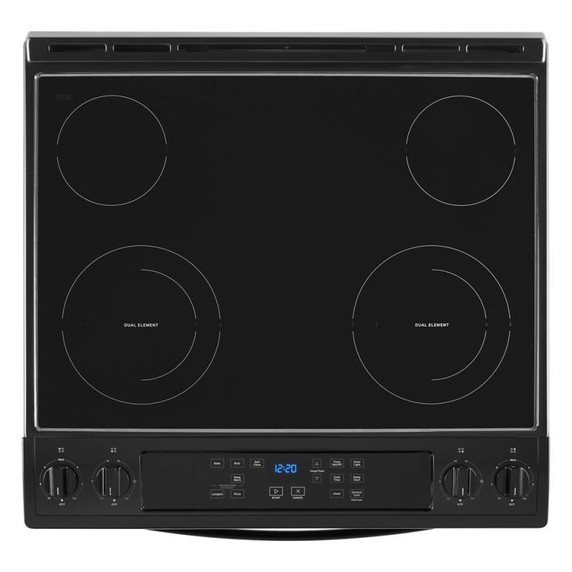

Two FlexHeat™ Dual Radiant ElementsGet two elements in one with a 6" inner ring that’s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.
Adjustable Self-Clean CycleClean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.

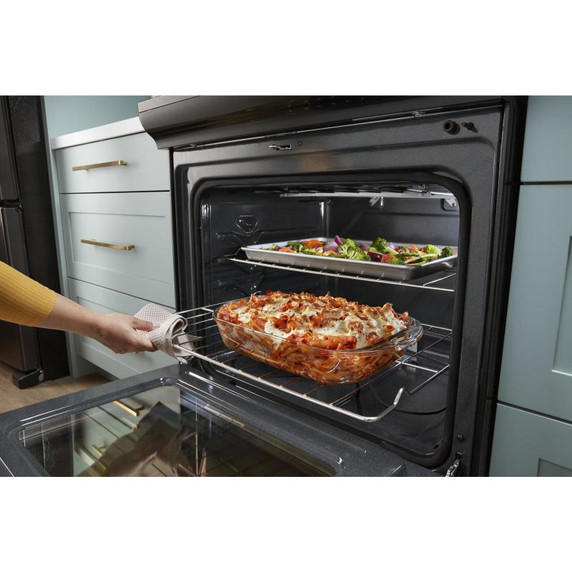

4.8 Cu. Ft. CapacityEasily cook large meals with 4.8 Cu. Ft. Capacity
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven.
Broil SettingWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.

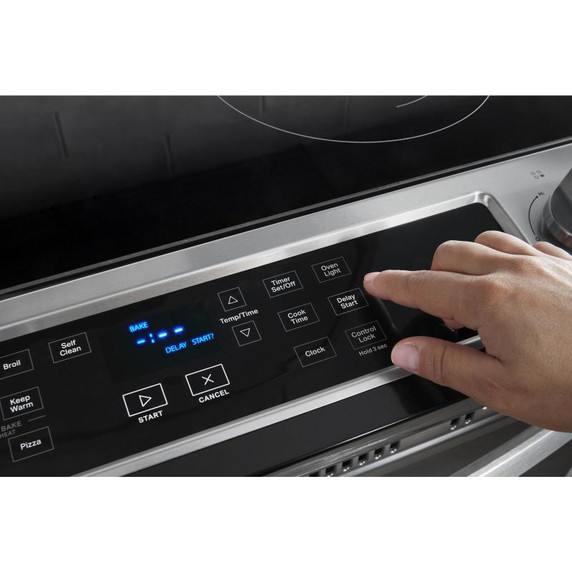

Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Cooktop Indicator LightsNotice when the cooktop’s still on or hot with Cooktop Indicator Lights, so you can finish every meal with added peace of mind.
Sabbath ModeUse your smartphone or tablet to remotely set the oven to remain on the "Bake" setting at a constant temperature until it's manually turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
Ceramic Glass CooktopWiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.
Electronic Display TypeLED
Knob ColorBlack
Volts120
Hz60
Power Cord IncludedYes
Amps40
Fuel TypeElectric
Annual Energy Usage Kwh498
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan ParentEW06IW2Y, EW06IW1Y, EW06IW4Y
Optional AccessoriesW10655449, W10655450, W10675027, W10731887, W10731886, W10655448, W10115773, W10675028, W10675026, W10731885
Product To Product PairsUXT5530AAS, WVW53UC0HV, WVU37UC0FS, WVU17UC0JW, UXT5230BDS, WVW73UC0LS, WVU17UC0JS, WVW57UC0FS, UXT4130ADS, UVL5430JSS, WVW51UC0LS, WVU57UC0FS, WVW53UC0LS
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
ULYes
ADA CompliantYes
Energy Rating Kwh Year498
Handle MaterialMetal
Door RemovableYes
Drawer TypeStorage Drawer
Handle ColorBlack
Handle TypeReach-Through Handle
Range TypeSlide-in
Broiler LocationTop of Oven
Oven Cleaning TypeSelf-Clean
Oven Control LocationFront Control
Oven Light Switch LocationOven Control

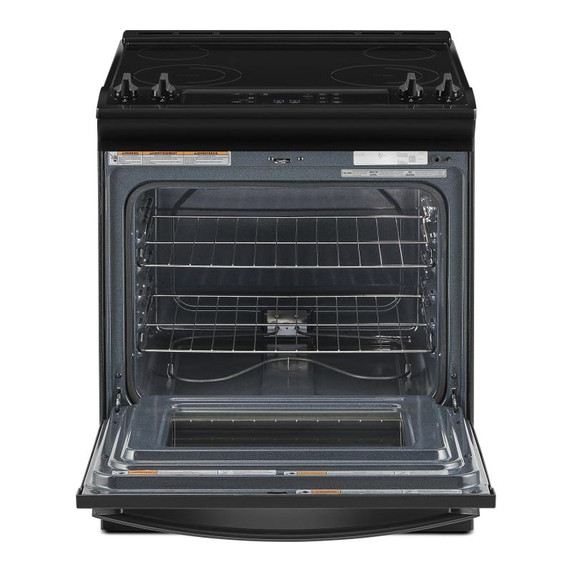

Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Hidden Bake ElementNo
Interior ColorDark Grey
Number Of Oven Lights1

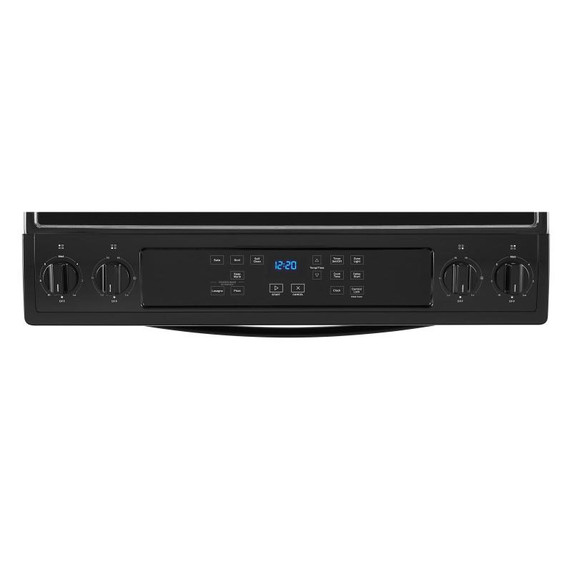

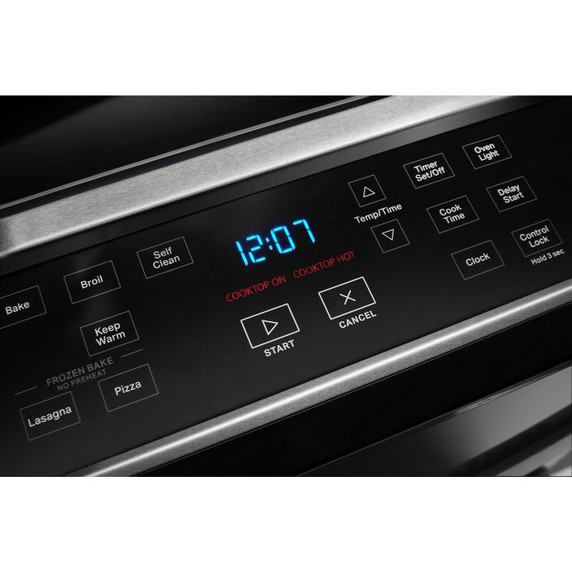

Oven Control TypeTap Touch
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Convection FunctionsNo
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop Control LocationFront

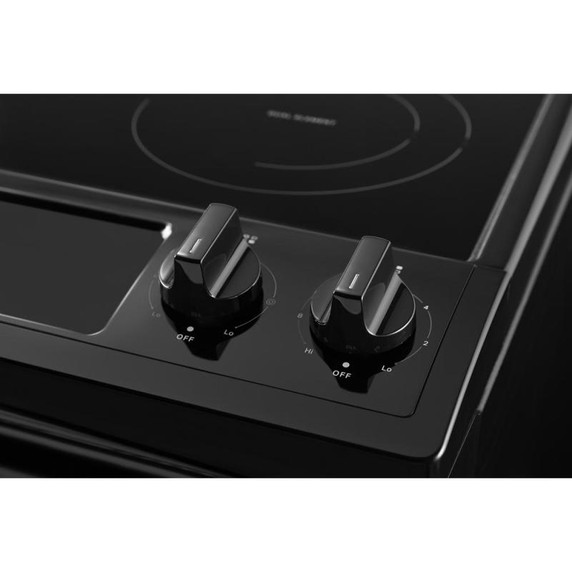

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Depth Closed Excluding Handles28.13"
Depth Closed Including Handles28.94"
Depth With Door Open 90 Degree47.38"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"

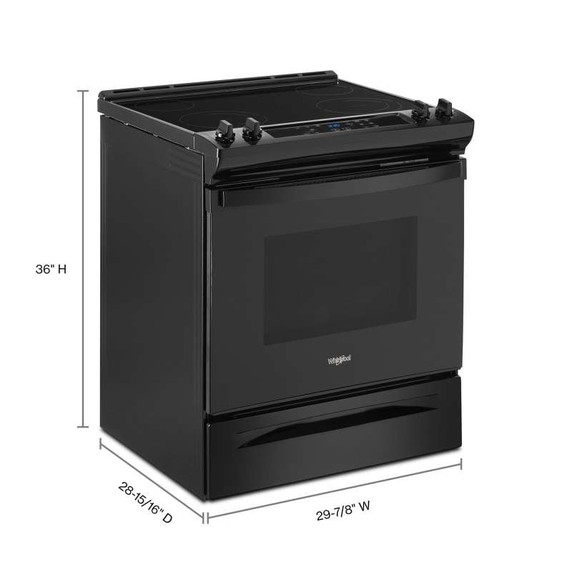

Depth28.94"
Gross Weight185.0 lbs.
Maximum Height36.0"
Minimum Height36.0"
Width29.88"
Capacity FT3 (cubic feet)4.8
