Electrical
Hz60
Amps15
Power Cord IncludedYes
208v CompatibleNo
Certifications
ULYes
ADA CompliantYes

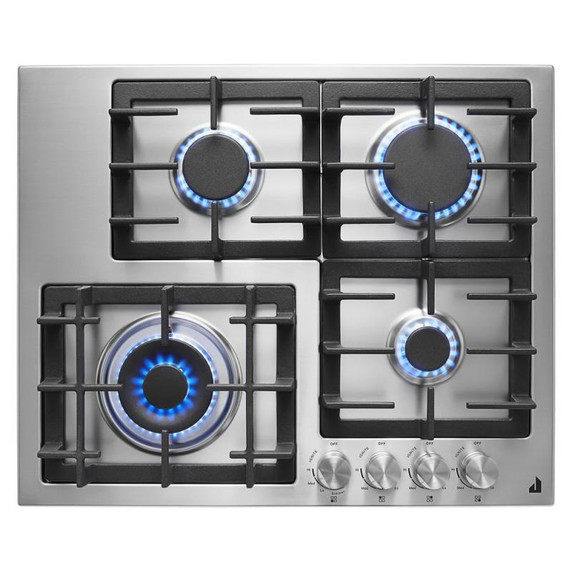

Cooktop Details

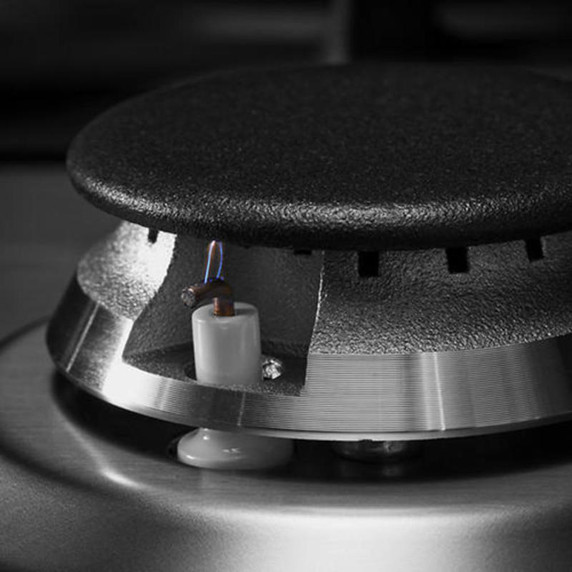

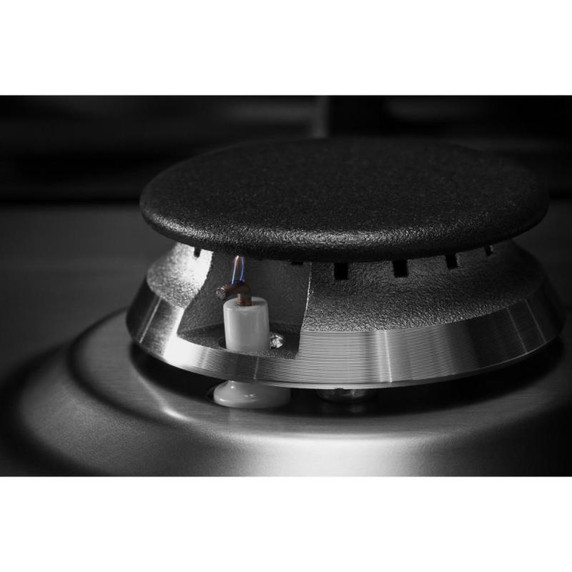

Cooktop Element StyleSealed Burners

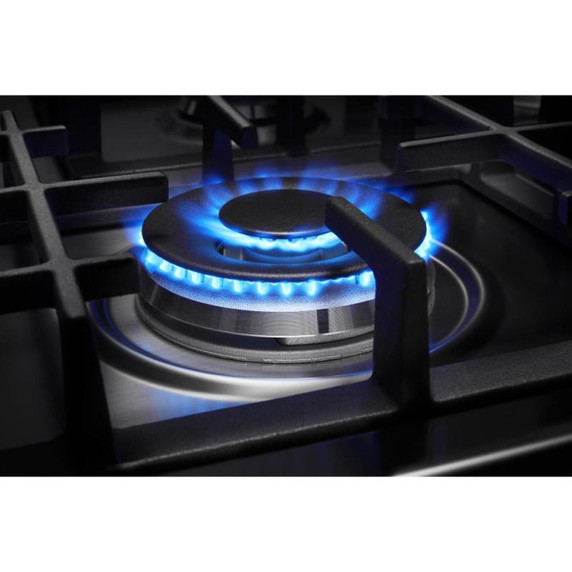

Left Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Right Front Element Burner TypeStandard
Left Front Element Burner Power18000BTU
Right Rear Element Burner Size4in.
Left Front Element Burner Size4.5in.
Left Rear Element Burner Power6300BTU
Left Rear Element Burner Size3in.
Right Front Element Burner Power4000BTU
Right Front Element Burner Size2in.
Right Rear Element Burner Power12000BTU
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Automatic Pan Size AdjustmentNon
Specifications
Extended Service Plan ParentEW07IW1Y
Country Of OriginItaly
Description
Size In24
Cooktop TypeTraditional
Combinations With OvenJJW6024; JJW2424; JJW2427; JJW2430; JJW3430

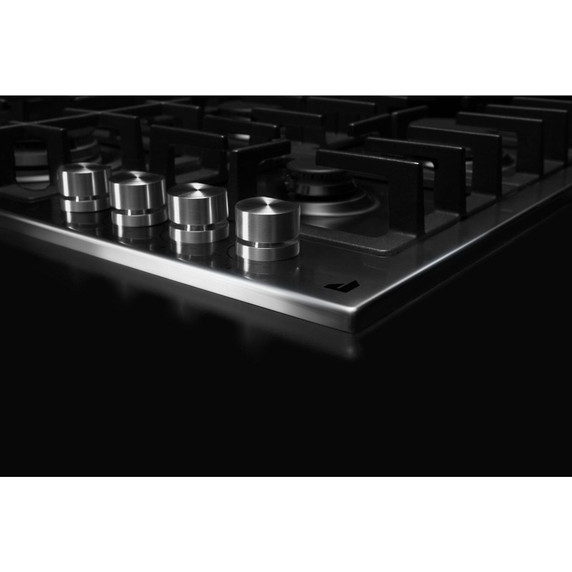

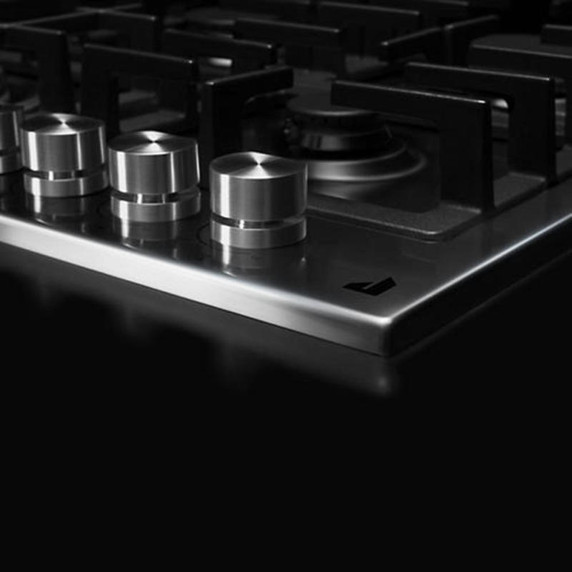

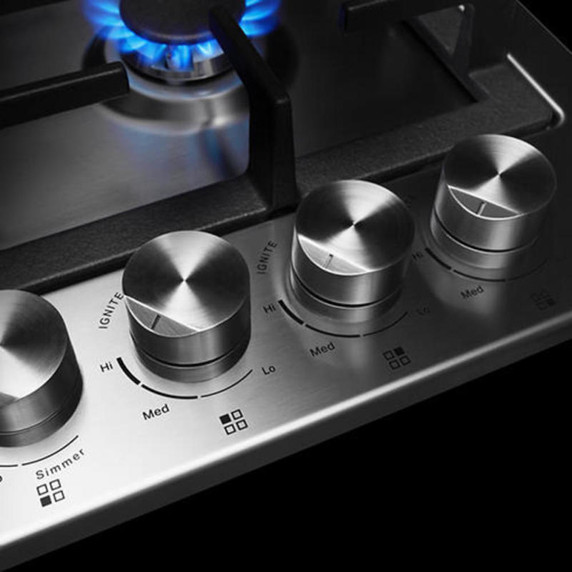

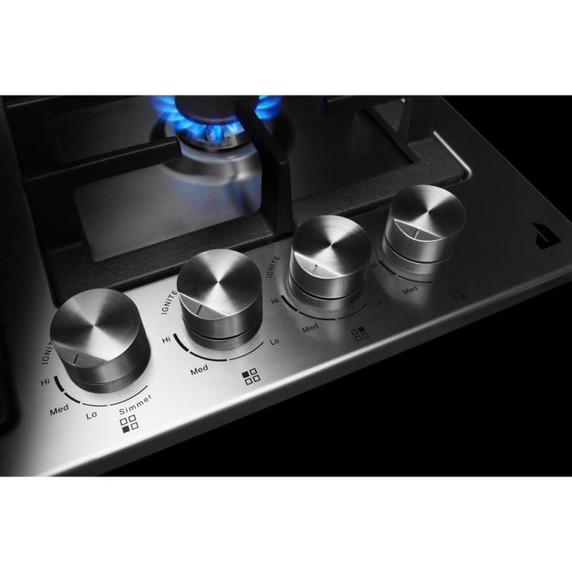

Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Depth20.06"
Height5.19"
Net Weight37.4 Kg.
Width24.5"
Carton Depth Inch28.38
Carton Height Inch8.25
Carton Width Inch23.63
Cutout Height3.33"
