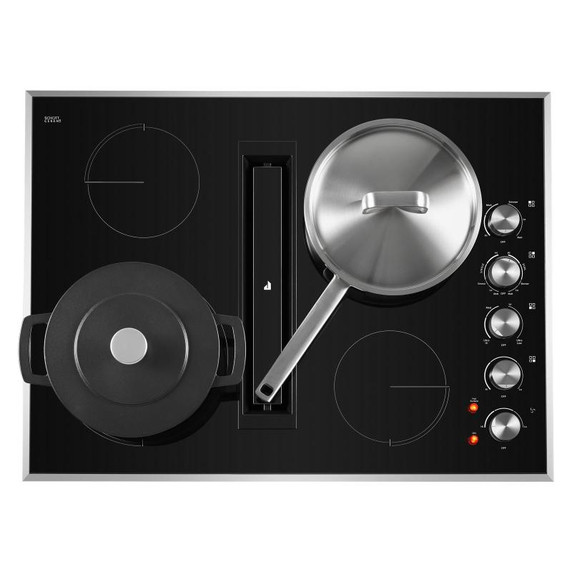

Jennair® 30" JX3™ Electric Downdraft Cooktop JED3430GS
JennAir Luxury Redefined Event, November 1 - December 31, 2024. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 or more qualifying JennAir® products!
JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
DuraFinish® Glass ProtectionDuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
Color-Coordinating Die-Cast Metal KnobsRobust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.

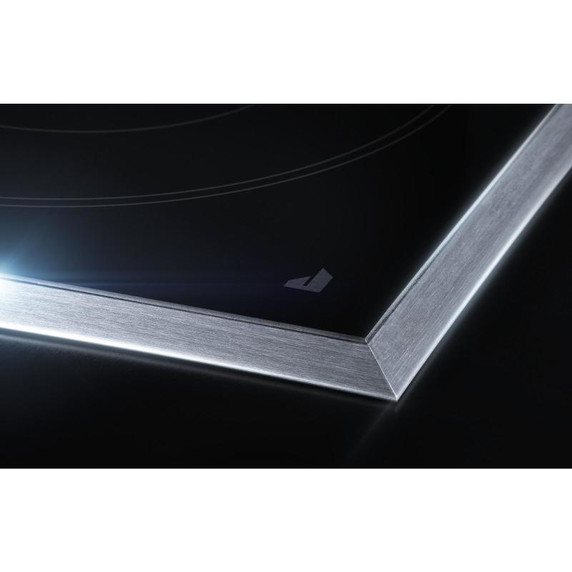

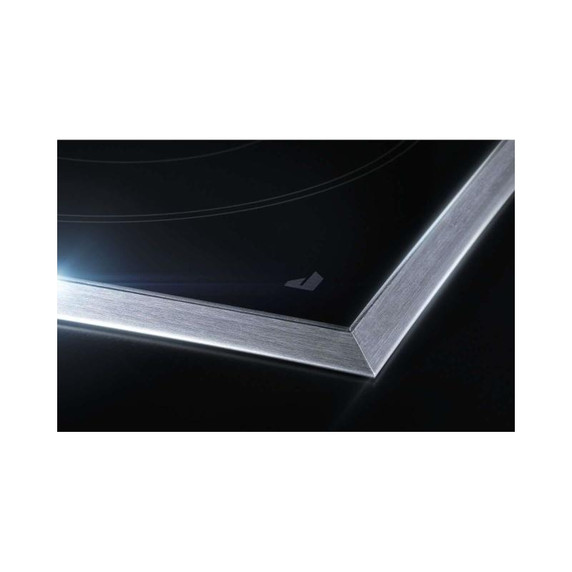

Lustre Brushed Metal DesignBlur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.
10"/6" Dual-Choice™ elementEnjoy cooking flexibility and efficiency with a two-tiered single element that accommodates various-sized cookware.
Perimetric ExtractionThis sophisticated design is not only attractive, it is the secret behind the ventilation system’s exceptional performance and quiet operation.
Convertible to Duct-Free VentilationKeep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW2Y, EW08IW4Y, EW08IW1Y
Optional AccessoriesW10355051B, W10620783, W10177003
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Front Element Burner TypeHigh Output
Left Rear Element Burner TypeHigh Output
Left Rear Element Burner Power1300W
Left Front Element Burner Power3200W
Left Front Element Burner Size10in.
Right Front Element Burner Power1200W
Right Rear Element Burner Power3000W/1400W
Right Rear Element Burner Size10in./6in.
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Downdraft VentYes
Installs Over Built In OvenNo
Description
Size In30
Cooktop TypeDowndraft
Electrical
Power Cord IncludedNo
Amps40
Volts220
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Design Type
Design ExpressionStainless Steel
Configuration and Overview
Fuel TypeElectric Radiant
Ventilation System
Cfm Motor Class310
Depth22.06"
Height3.66"
Maximum Height18.72"
Net Weight70.0 lbs.
Width30.88"

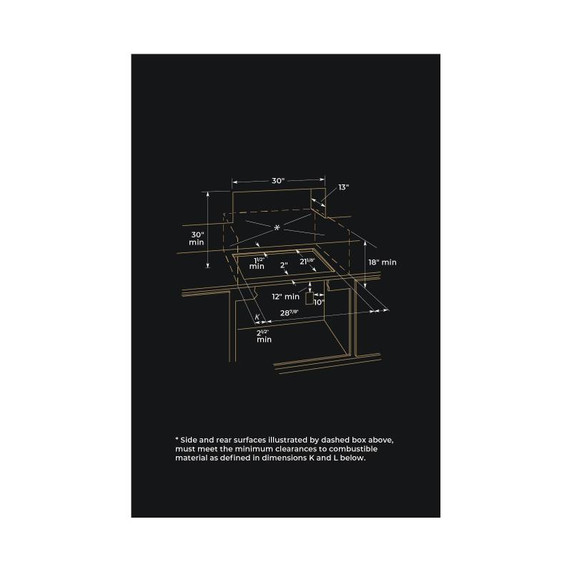

Cutout Depth21.13"
Cutout Width28.88"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
