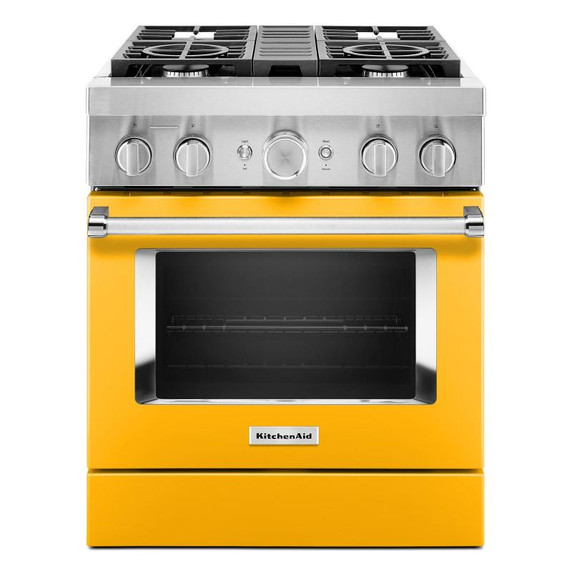

Dual Fuel Rangesatisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

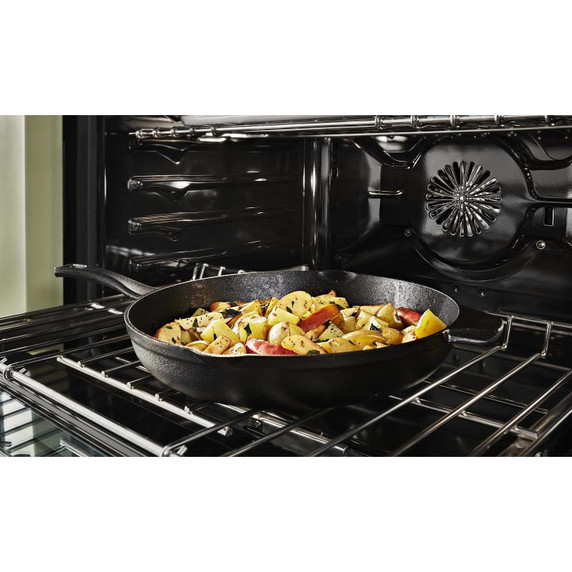

Even-Heat™ True Convectionfeatures a unique bow-tie design with heating element and fan that provides even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
Smart Appliancelets you control the oven with your Google Assistant device* to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

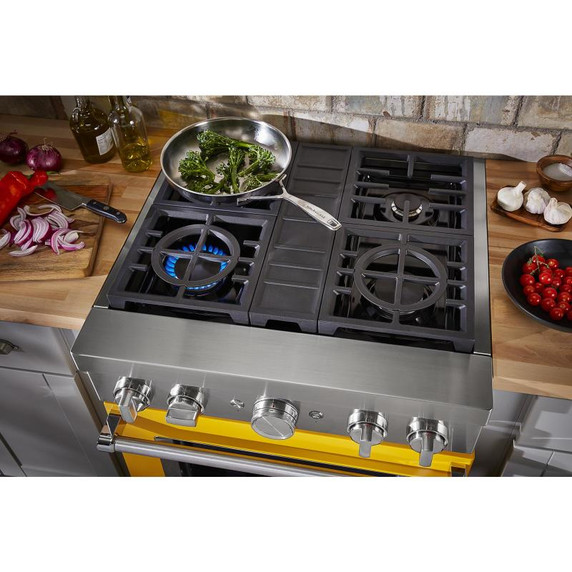

Two 20,000 BTU Ultra Power™ Dual-Flame Burnersgive you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

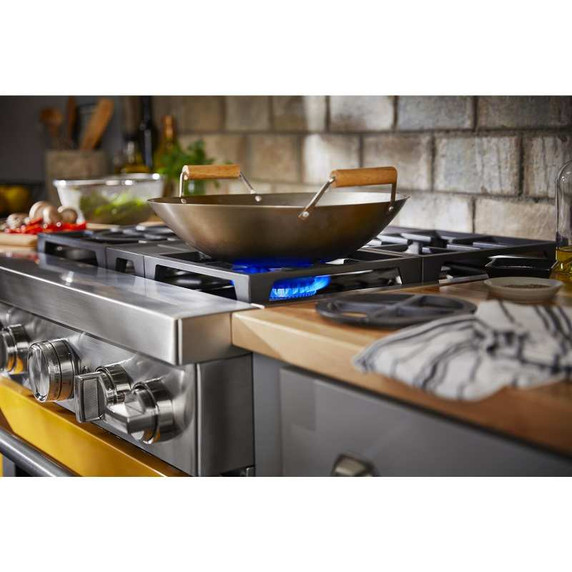

Three-Level Convertible Grateswith removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.
5,000 BTU Simmer & Melt Burner - Reduces to 900 BTUswith a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
4.1 Cu. Ft. Capacityprovides ample room to cook large dishes, such as a whole turkey or roast.

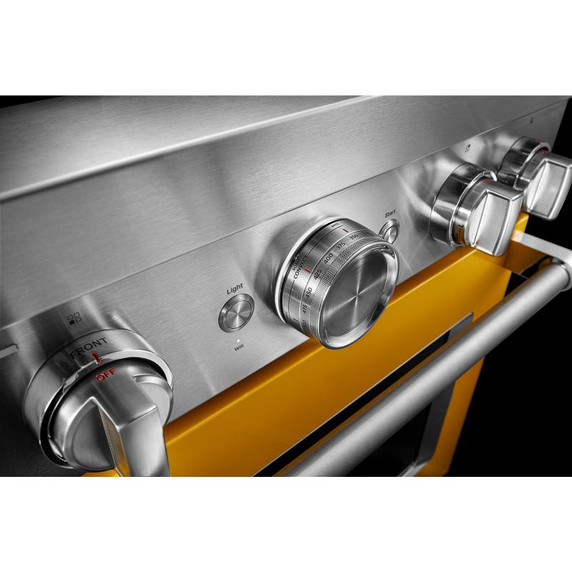

Dual-Concentric Oven Knobprovides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

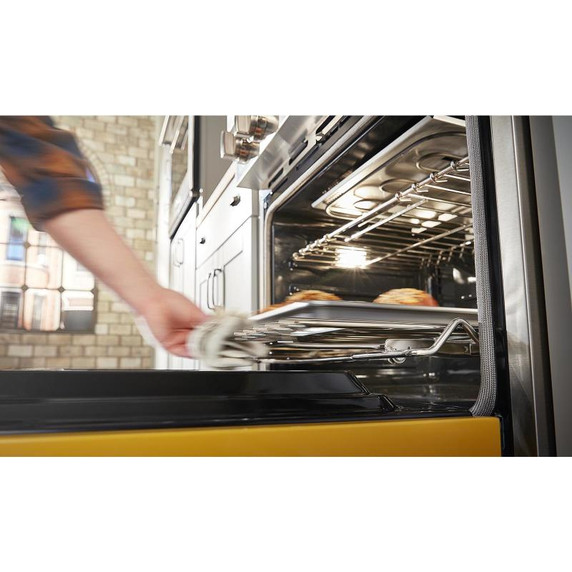

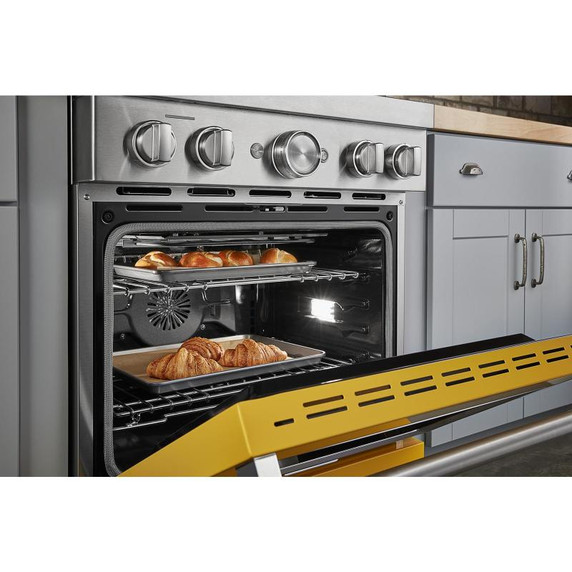

SatinGlide™ Roll-Out Extension Rackmakes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
One 15,000 BTU Burnerdelivers the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.

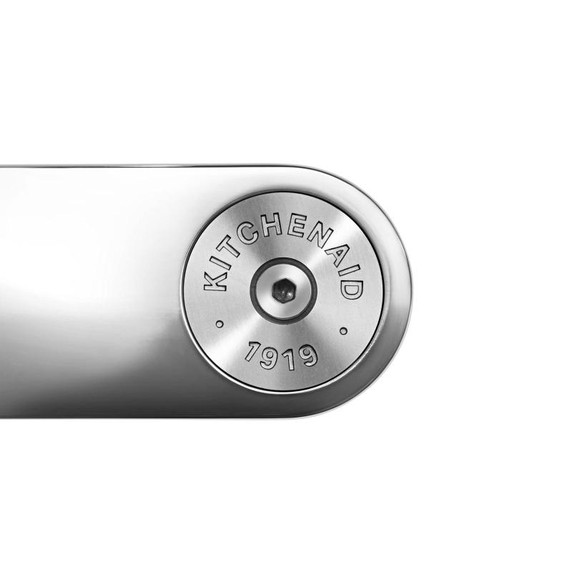

KitchenAid® Handle Medallion Kit (sold separately)lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)
Star-K CertifiedApproves the oven for use on the Sabbath and other religious holidays when Sabbath Mode is being used.
Knob TypeWeighted
Knob ColorStainless Steel
Hz60
Volts240
Power Cord IncludedNo
Amps40
Fuel TypeDual Fuel
Works WithAmazon Alexa; Android; Google Assistant; iOS
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Annual Energy Usage Kwh337
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW11IW2Y, EW11IW4Y, EW11IW1Y
Product To Product PairsW10115773, W10285447, UVL5430JSS, KVUC600KSS
Optional AccessoriesW11368841NE, W10115773, W10285447, W11368841BN, W11368841MP, W11368841CF, W11368841BO, W11368841RE
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Natural Gas ConvertibleYes
GriddleN/A
Power Outage CompatibleYes
Heating Element On Indicator LightNo
ULYes
ADA CompliantNo
CULYes
Star K CertifiedYes
Energy Rating Kwh Year337
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Size In30
Range TypeFreestanding
Bake Element Power3000W
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Oven Control LocationFront Control
Oven Control TypeKnobs
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Rack Guide TypeMolded
Broiler LocationTop Center
Number Of Oven Lights3
Oven Interior Depth In Inches16.3
Oven Interior Width In Inches24.0
Oven Rack TypeGliding Roll-Out; Standard (Both)
Number Of Oven Racks3
Broiler Element Power5500W
Convection Element Power Watts1600
Convection Element TypeTrue-Bow Tie
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Ignition TypeFlame-Sensing™ Re-ignition
Cooktop ConfigurationAll Burners
Number Of Cooking Element Burners4
Right Rear Element Burner TypeSealed Burner
Left Front Element Burner Power20000BTU/14000LP
Left Rear Element Burner Power15000BTU/11000LP
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power20000BTU/14000LP
Right Rear Element Burner Power5000BTU/3000LP
Number Of Grates4
Grate DetailsDishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Carton Depth35.5"
Carton Height47.5"
Carton Width35.8"

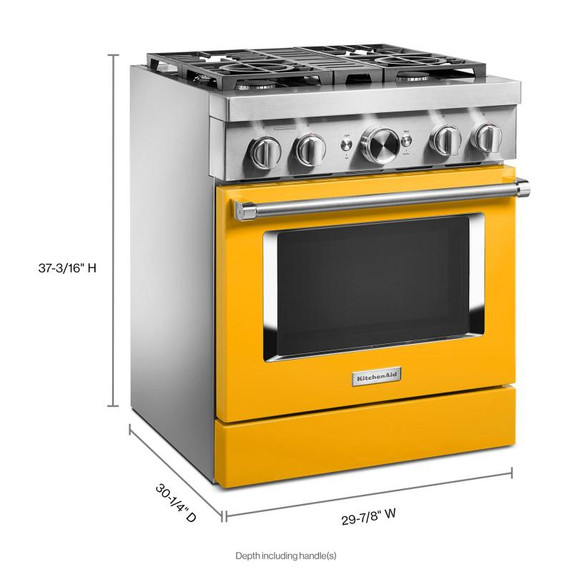

Depth Closed Excluding Handles27.75"
Depth Closed Including Handles30.25"
Depth With Door Open 90 Degree46.5"
Gross Weight408.0 lbs.
Height36.0"
Maximum Height37.5"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)4.1
