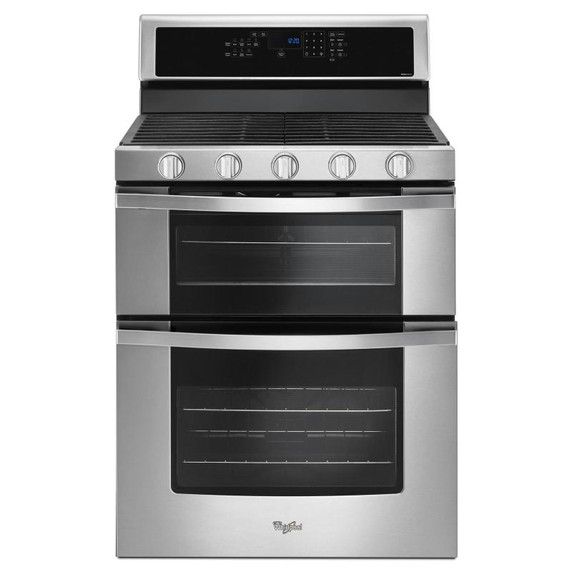

Whirlpool® 6.0 Cu. Ft. Gas Double Oven Range with Center Oval Burner WGG745S0FS
Whirlpool
Whirlpool® 6.0 Cu. Ft. Gas Double Oven Range with Center Oval Burner WGG745S0FS
Frozen Bake™ TechnologySkip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

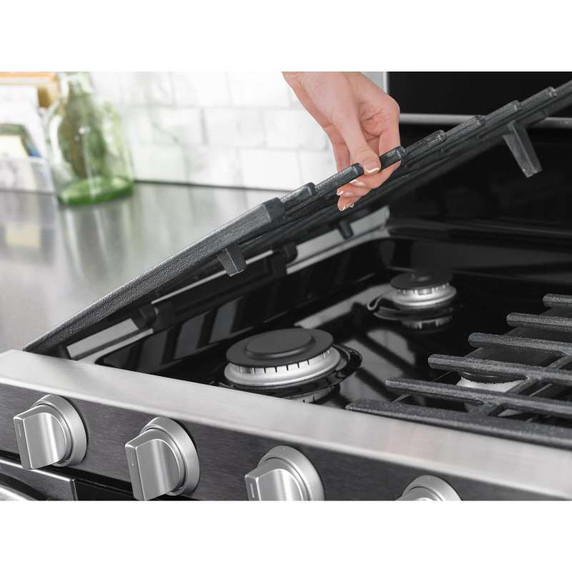

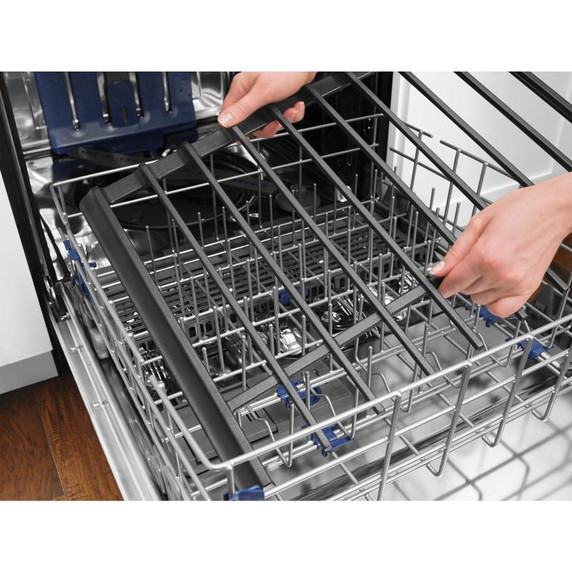

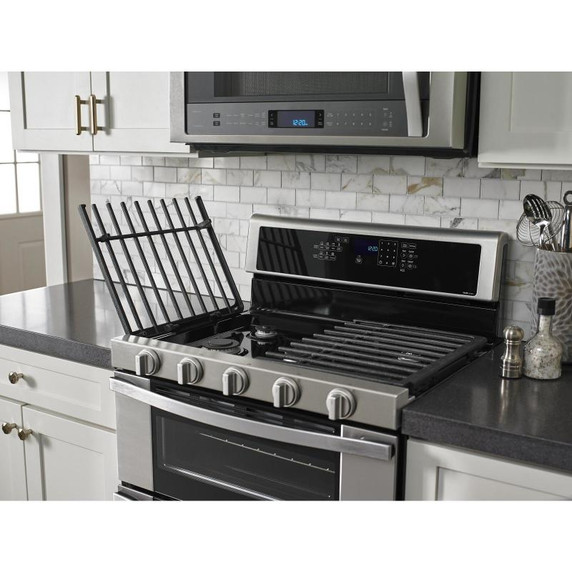

EZ-2-Lift™ Hinged Cast-Iron GratesGet quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.
True Convection CookingTrue convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
SpeedHeat™ BurnerSear and boil quickly with the high temperatures provided by the 16,000-BTU SpeedHeat™ burner.

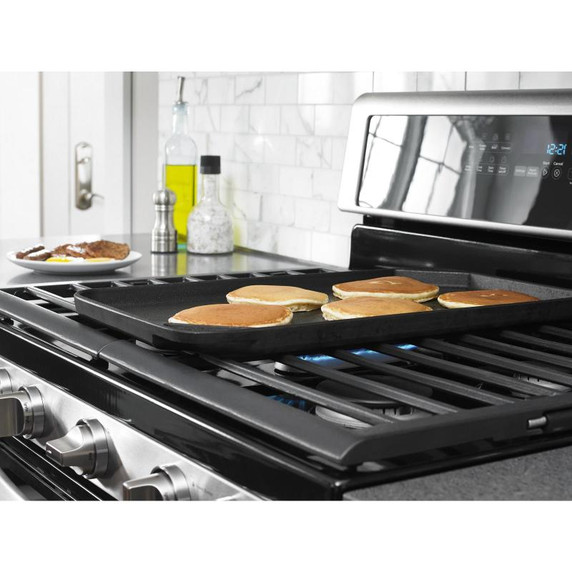

Center Oval BurnerThe oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.
Convection ConversionYour oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid Preheat (Lower Oven Only)Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
SteamClean OptionThe SteamClean option saturates baked on messes with water and high heat so they wipe up quickly.

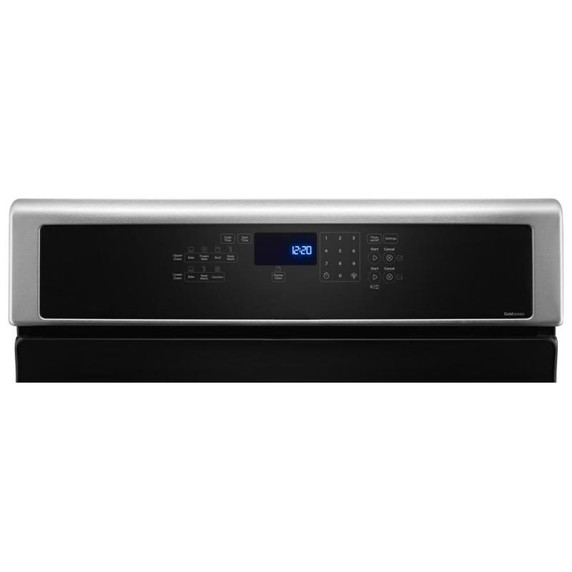

Controls
Knob TypeWeighted
Electronic Display TypeDigital
Knob ColorBlack Stainless
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedNo
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional AccessoriesW11123246
Extended Service Plan ParentEW08IW2Y, EW08IW4Y, EW08IW1Y
Product To Product PairsWVW51UC0LS, UXT5530AAS, WVU17UC0JS, WVW53UC0LS, WVW73UC0LS, WVW57UC0FS, WVW53UC0HV, WVU17UC0JW, WVU37UC0FS, WVU57UC0FS, UVL5430JSS
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
GriddleN/A
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Refinements
Whr RangeBladed Knob; EZ-2-Lift™ Hinged Grates; Frozen Bake™ Technology; Self-Cleaning; True Convection; Whirlpool Handle
Certifications
ULYes
ADA CompliantNo
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Configuration
Range ConfigurationFreestanding
Oven ConfigurationDouble Oven
Description
Size In30
Range TypeFreestanding Double Oven
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior ColorGrey
Number Of Oven Racks2
Number Of Rack Guides5
Number Of Oven Lights1
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Control LocationRear Control
Broiler Element Power10000BTU-Upper
Oven Rack TypeStandard
Convection Element TypeTrue
Bake Element Power16000BTU
Convection FunctionsNo
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Number Of Grates2
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Cooktop Surface ColorStainless Steel
Center Rear Element Burner Power7350BTU
Left Front Element Burner Power16000BTU
Ignition TypeÉlectroniques
Grate DetailsDishwasher Safe; Hinged; Matte Finish; Porcelain Coated Cast Grates
Carton Depth30.25"
Carton Height49.5"
Carton Width30.75"
Depth Closed Excluding Handles27.25"
Depth With Door Open 90 Degree46.0"
Gross Weight263.0 lbs.
Height47.13"
Net Weight0.0 lbs.
Width29.94"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
